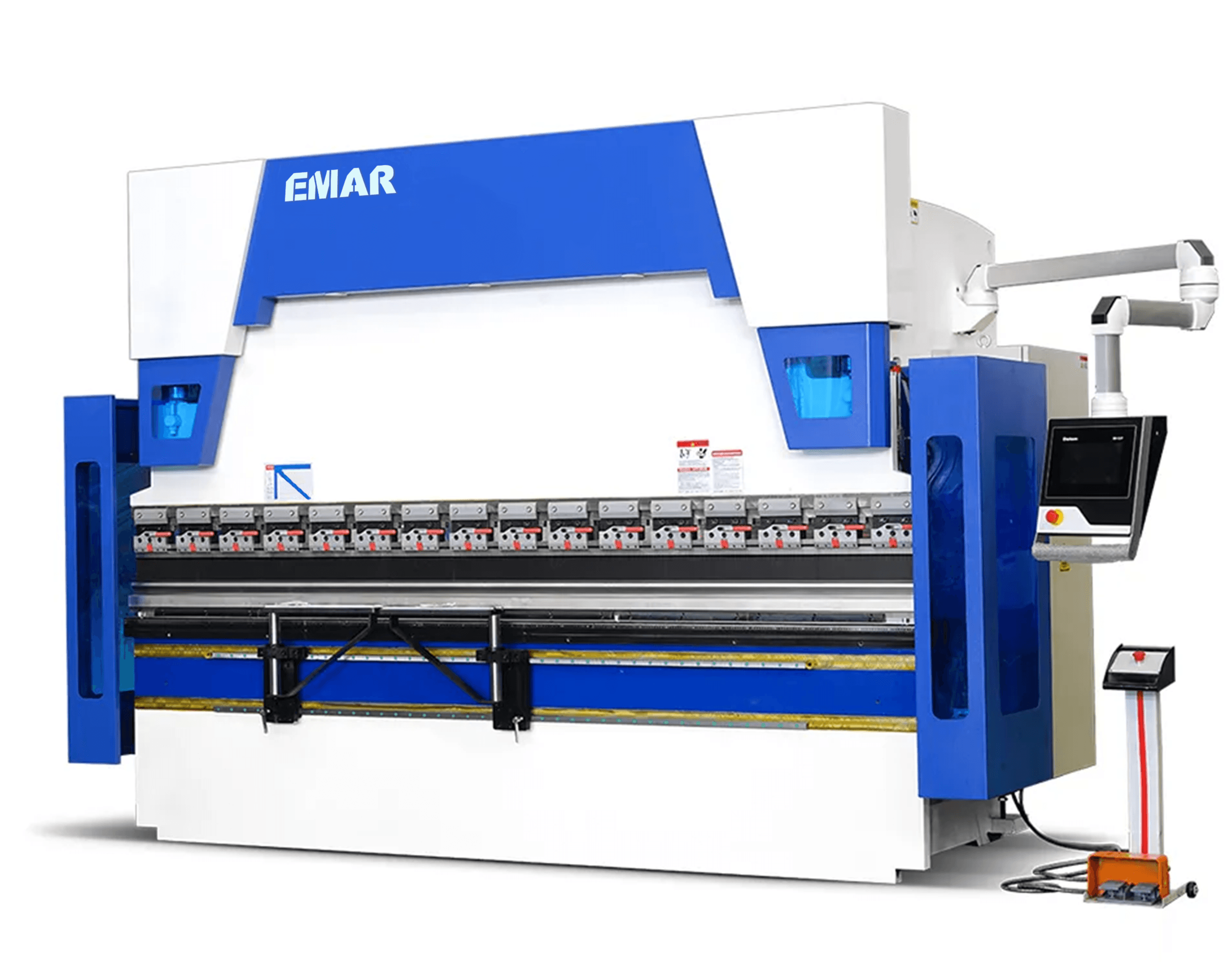

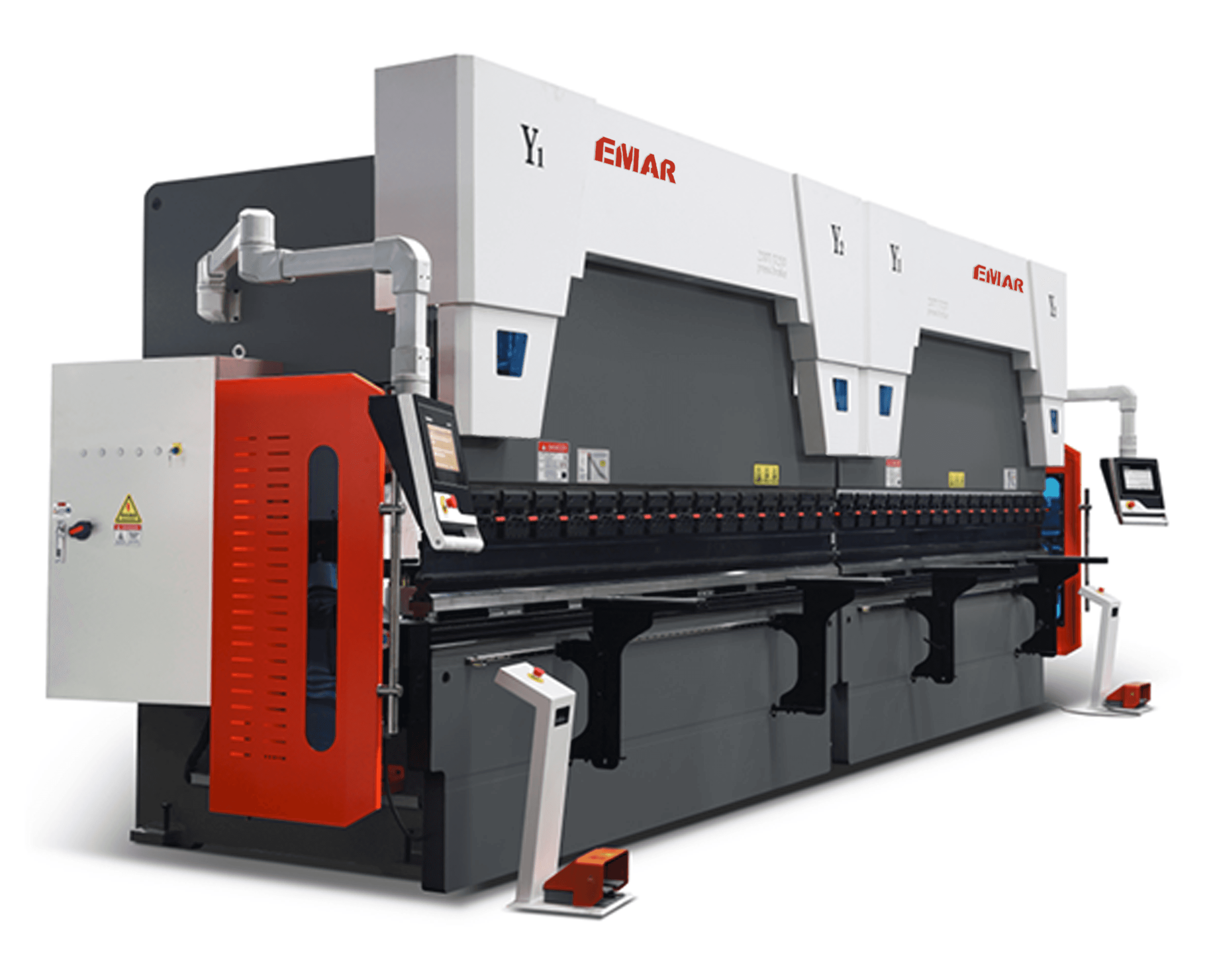

CNCPressBrake
Higher Accuracy .. Consistent Bending .. Built for Continuous Production
Purpose-engineered for high-accuracy sheet metal bending, the EMAR CNC Press Brake combines durability, intelligent control, and consistent performance for demanding industrial applications
Key Features & Benefits
Delem Control
User-friendly integrated control The Delem Control provides an integrated and user-friendly system for precise and efficient bending operations
Oil-Electric Hybrid Machine
Higher accuracy .. More efficiency The hybrid system uses a Servo-Driven Pump System instead of a traditional induction motor, reducing heat, wear, and energy consumption while extending pump lifetime and maintaining responsive power delivery
High-Resolution Linear Scale
Givimeasure, Italy – 5 µm Accuracy The Givimeasure Linear Scale monitors ram displacement in real time, enabling fine control of bend angle and repeatability, with ±0.005 mm resolution
DSP Laser Angle Sensing / Crowning System
Consistent bend accuracy across the full bed length The laser-based angle measurement and Automatic Crowning Compensation correct for deflection during long bending operations, helping maintain consistent bend accuracy across the entire bed
Greater flexibility and precision
Multi-axis control provides X-Axis control for back-gauge positioning and R-Axis control for tool offset, giving greater flexibility and precision in complex bending sequences
Tooling, Punches & Dies
Versatility across different bending profiles A full range of Tools, Punches & Dies is available for a wide variety of sheet metal bending applications and bend profiles
Technical Specifications
Full specifications for the CNC Press Brake. Contact our team for custom configurations or application-specific requirements.
Download PDF| Table Length | 1,300–10,000 mm |
| Nominal Pressure | 500–8,000 kN |
| Distance Between Columns | 1,120–7,800 mm |
| Stroke | 150–320 mm |
| Open Height | 460–800 mm |
| Main Motor Power | (5.5×1)–(30×2) kW |
| Precision | 5 μm |
| Controller | Delem (Netherlands) |
| Back-Gauge Servo Motor & Drive | Delta – Taiwan |
| Laser Optical Safety Guards | MSD Laser |
Get a Quote for the CNC Press Brake
Contact our sales team for the best price and unit availability. We respond within hours.
